1. Control System Computer or Instrument control, make sure machine working steadily. 2. Hot Air Heating System Both top and bottom zones hot air heating, good heater compensatory,High thermal efficiency, energy saving, speedy heating, suitable for soldering components like BGA,CSP etc.Special forced hot air circulation structure makes PCB and components heat evenly, Temperature Accuracy ± 1.5 °C, room temperature settling time less than 20 minutes. 3. Cooling System Independent cooling area ensures the low temperature when PCB comes out. 4. Transmission system Use imported motors, speed adjuster, smoothly running, adjustable speed at 0-2000mm/min.

1, the body streamlined appearance design, the use of plastic spraying process does not drop paint, beautiful and generous, durable. 2, four independent 2.0 m preheating area, full hot air preheating, so that PCB get good welding effect. 3, patented titanium alloy chain claw, non-stick tin, never deformation, long life. 4, three observation Windows, beautiful and generous appearance, easy to operate and maintenance. 5, tin furnace electric in and out, hand lifting. 6, equipped with cooling module, temperature compensation module, suitable for lead-free welding and a variety of process requirements 7. Tin furnace adopts adjustable nozzle design; the oxidation amount of tin slag is very low, and the principle of liquid tin flow type design is adopted to reduce the impact oxidation amount of tin. The wave peak can be adjusted with PCB plate width, greatly reducing the oxidation amount of tin when welding PCB small plate, and the adjustable distance is 80-350MM. 8, the transmission mechanism adopts precision modular design, accurate transmission, long life, easy to maintain. 9. The rosin spray device can be pulled out and disassembled for easy cleaning and maintenance. 10. Isolation spray device, and the flux smoke is discharged from the special air duct. 11. Powerful parameter library function, and all kinds of PCB process parameters can be called as required. 12. Use the computer + PLC control system to ensure the reliability and stability of the system. 13. The machine can be automatically switched off according to the date, time and temperature control parameters set by the user. 14. The heating temperature is controlled by PID closed-loop, and the temperature control is stable and reliable. 15. Closed-loop automatic tracking spray system, spray width and spray time automatic adjustment, and can be set in advance and extend the spray time as needed. Set with economic operation, plate automatic wave, minimize the amount of tin oxidation.

T series lead-free wave soldering machine,after many years market testing, is XuanYI’s mature product, T series lead-free wave soldering machine has long-term positive feedback from customers. Its unparalleled heating performance and temperature control system meet the requirements of various welding processes, especially energy saving design has been a leading-edge product advantage, maximum reducing the using cost for customers.

1. Meet the use of circuit boards and general soldering products (with suitable fixtures) 2. Improve welding quality and imitate manual welding 3. Improve production efficiency and can weld batches of products at the same time, which is about 4 times higher than manual 4. The speed is more than 1 times faster than the traditional semi-automatic tinning furnace. Action design: because the empty run accounts for most of the stroke, the empty run speed is increased. Tin scraping and tin immersion are slow, and the tin immersion depth can be set directly on the touch screen, which is more convenient and accurate than the traditional sensor adjustment. 5. It can be set to scrape the tin ash once and immerse n times. (For example, n=3, tinning three times and scraping the tin ash once, n=0, scraping the tin ash once every tinning) As long as the substrate with good flux is placed on the needle rack, and then the foot switch is stepped on, multiple substrates of various types can be welded at one time. From the substrate angled tinning to the horizontal tinning time and the substrate tinning angle, all are controlled by a microcomputer, completely simulating the principle of manual tinning, and personnel do not need training. Anyone can do the tinning operation without skilled hands. The welding quality is stable and the production efficiency can be improved.

1. One machine has multiple uses. It can be used for single-point soldering of PC boards, local plug-in soldering, desoldering of ICs and parts, or special soldering. 2. Low power consumption and less tin slag. 3. The tin tank and tin spraying channel are made of industrial pure titanium plates, which are resistant to high temperature and corrosion. The heating core uses imported ceramic heating plates, which are durable. 4. There are no obstacles around the top of the tin spraying nozzle. Whether it is a large or small board, the soldering direction can be operated at will without changing the direction of the tin spraying nozzle. 5. No tin slag is generated on the soldering surface, and the soldering surface always remains bright and fluid, greatly improving the welding quality. 6. According to product features: multiple nozzles of different sizes are delivered

1. The furnace is made of imported military-grade high-quality titanium plate (titanium is used in aviation, aerospace, chemistry, biology, etc.), containing more than 99.56% titanium. Under long-term high temperature of 400℃, it has the characteristics of corrosion resistance, acid resistance, and non-stick tin, and all have SGS certification reports, which is an ideal choice for lead-free operations. 2. The thermostat adopts PID self-tuning technology, solid-state relay output, temperature error ±2℃, and temperature compensation function, which can ensure that the displayed temperature is consistent with the actual temperature. 3. The ceramic heating core and thermocouple are made of imported components, and the external heating type has high heating efficiency, long service life, and saves electricity. 4. The vertical tin furnace has an automatic on and off function, which can save tin melting time, and tinning operations can be carried out immediately when going to work. 5. The appearance of the vertical tin furnace is made of 1.5mm cold plate, which is sturdy and durable, and the surface is sprayed with computer white paint. Casters are installed at the bottom for easy movement. After the position is set, step on the brake to fix it. 6. The welding area is large, which is suitable for electronics factories to carry out tinning operations on various circuit boards.

A. Zero distance between shock wave and flat wave: It overcomes the defects of traditional double wave soldering, such as temperature drop between double peaks, ineffective flux due to long tinning time, and accumulation of tin slag between double waves. B. Energy saving: Spray tin can be driven by only one set of power; the amount of oxidation of the nozzle of the same size is only half of that of traditional wave soldering. C. Improved process capability: It has good welding processability for SMT red glue patch boards and bottom-shielded fixture boards. The integration of double waves reduces the size and volume of the tin tank, reduces the cost of tin input, and greatly reduces the amount of oxidation.

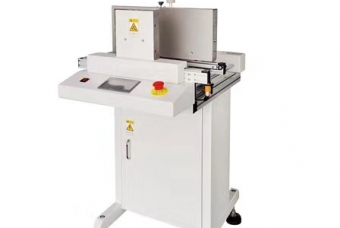

Features: 1、Fully steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2、Mitsubishi PLC control system, touch screen interface 3、 Combined with PCB loading and pass-by functions. 4、Adjust width by precision ball screw, PCB can pass by smoothly. 5、 Applicable to multiple thickness of PCBA from 0.6 to 3mm. 6、 Short cycle time, high loading efficiency. 7、 Compact structure, easy to operate. 8、 Non-stop loading boards. 9、 Small size. Save space. 10、Background suppression photoelectric, suitable for various color PCBs with sensitive induction. 11、Configure with Standard SMEMA to communicate with other machines to achieve inline operation. 12. CE certified.

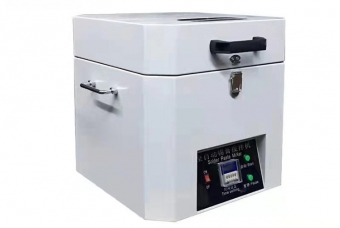

The solder paste miser efficiently and evenly mixes the solder paste to a liquid state. It helps to achieve better results of stencil printing and reflowing processes. The use of the mixer also reduces the chances of absorbing air moisture as it is no longer necessary to remove the lid of the solder paste jar before the paste is actually used in production.

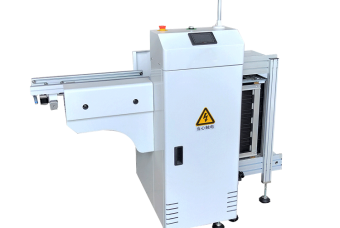

The Multi Magazine Unloader is used at the end of the line for unloading of PCB’s from the production line. An arriving PCB is taken up by the attached conveyor and then pushed into the magazine by the pusher. The magazine indexes to the next position and is ready for the following unloading cycle

①　The heating system adopts SMT patented heating technology. ②　It adopts imported high-current solid-state relays with contactless output, which is safe and reliable. It is equipped with a special SSR heat sink, which greatly improves the heat dissipation efficiency and effectively extends its service life. ③　The heating components adopt imported high-quality components to ensure the high stability and reliability of the system, and can also guarantee a longer service life. ④　The modular design of the heating area is convenient for maintenance and disassembly. ⑤　It has temperature deviation, fault diagnosis, and sound and light alarm functions. ⑥　Independent small-circulation air supply design, upper and lower heating methods, good thermal compensation, high thermal efficiency, power saving, and fast heating speed, suitable for welding high-quality products such as BGA and CSP components. The special forced hot air circulation structure system makes the PCB and components heated evenly, with high efficiency and fast heating speed. ⑦　The air supply system adopts advanced air duct design, with uniform air supply and high heat exchange efficiency. ⑧　The preheating zone, welding zone and cooling zone are heated independently, circulated independently, and temperature controlled independently. The temperature difference between adjacent temperature zones can reach 3℃ at most, without temperature cross-talk. The temperature and wind speed of each temperature zone can be adjusted independently. ⑨　The imported high-temperature motor is directly connected to drive the hot air circulation, which has good hot air balance, stable operation, long life and low noise. ⑩　The power of each temperature zone is properly matched, and the temperature rises rapidly, from room temperature to the set working temperature in about 15 minutes. And it has fast and efficient thermal compensation performance. ⑪　Modular design, compact structure, and easy maintenance. ⑫　The independent cooling zone ensures the required low temperature when the PCB board is out of the board. ⑬　The transmission system adopts a variable frequency motor imported from Taiwan, with a 1:100 imported turbine reducer, which runs smoothly and the speed can be adjusted from 0 to 1500mm/min. ⑭　The independent roller structure and leveling support are adopted, combined with a stainless steel mesh belt, which runs smoothly and is suitable for BGACSP and other welding. ⑮　Special stainless steel mesh belt, durable and wear-resistant. It is not easy to deform after long-term use.

1. It has temperature tolerance, fault diagnosis, and sound and light alarm functions. 2. The modular design of the heating area is convenient for maintenance and disassembly, independent small circulation air flow design, upper and lower heating method, good thermal compensation, high thermal efficiency, power saving, fast heating speed, suitable for welding of high-quality products such as CSP components. The special forced hot air circulation structure system can reach MAX up to 15 minutes. And it has fast thermal compensation performance. 3. Modular design, compact structure, easy maintenance. 4. Adopting independent roller structure and leveling support, combined with stainless steel mesh belt, it runs smoothly, durable and wear-resistant. It is not easy to deform after long-term use
