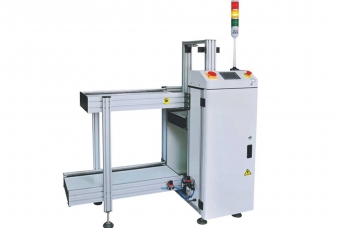

Features: 1、Fully steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2、Mitsubishi PLC control system, touch screen interface 3、 Combined with PCB loading and pass-by functions. 4、Adjust width by precision ball screw, PCB can pass by smoothly. 5、 Applicable to multiple thickness of PCBA from 0.6 to 3mm. 6、 Short cycle time, high loading efficiency. 7、 Compact structure, easy to operate. 8、 Non-stop loading boards. 9、 Small size. Save space. 10、Background suppression photoelectric, suitable for various color PCBs with sensitive induction. 11、Configure with Standard SMEMA to communicate with other machines to achieve inline operation. 12. CE certified.

The solder paste miser efficiently and evenly mixes the solder paste to a liquid state. It helps to achieve better results of stencil printing and reflowing processes. The use of the mixer also reduces the chances of absorbing air moisture as it is no longer necessary to remove the lid of the solder paste jar before the paste is actually used in production.

The Multi Magazine Unloader is used at the end of the line for unloading of PCB’s from the production line. An arriving PCB is taken up by the attached conveyor and then pushed into the magazine by the pusher. The magazine indexes to the next position and is ready for the following unloading cycle

1.Fully Steel structure, welded with metal plate and high temperature spray coated for the outer surface. 2. Mitsubishi PLC control system, touch screen interface 3.Lifting by motor, transmission by precision ball screw, effective step distance can be set by 10,20,30,40mm。 4.Material containers are fixed by four-position cylinder, moving stable. 5.Board pushing drive by motor, stable, speed adjustable. 6.Photoelectric protection, sound and light alarm in case of abnormality. 7.With Standard SMEMA to communicate with other machines to achieve inline operation. 8. CE certified.

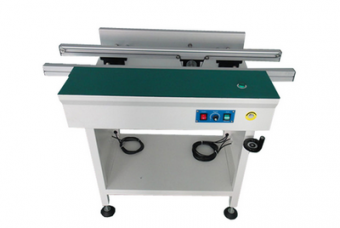

1. Full steel structure, welded with metal plate and high temperature spray coated for the outer surface, the bottom added weight and not easily displaced. 2.Special anti-static belt, slip-resistant, wear-resistant. 3.Stepper motor transmission, speed adjustable. 4.Dual precision ball screw to adjust width, smooth and stable. 5. Hardened guide rail, stable and not easily deformed. 6. Photoelectric protection, sound and light alarm in case of abnormality. 7. Configure with Standard SMEMA to communicate with other machines to achieve inline operation. 8. CE certified.
