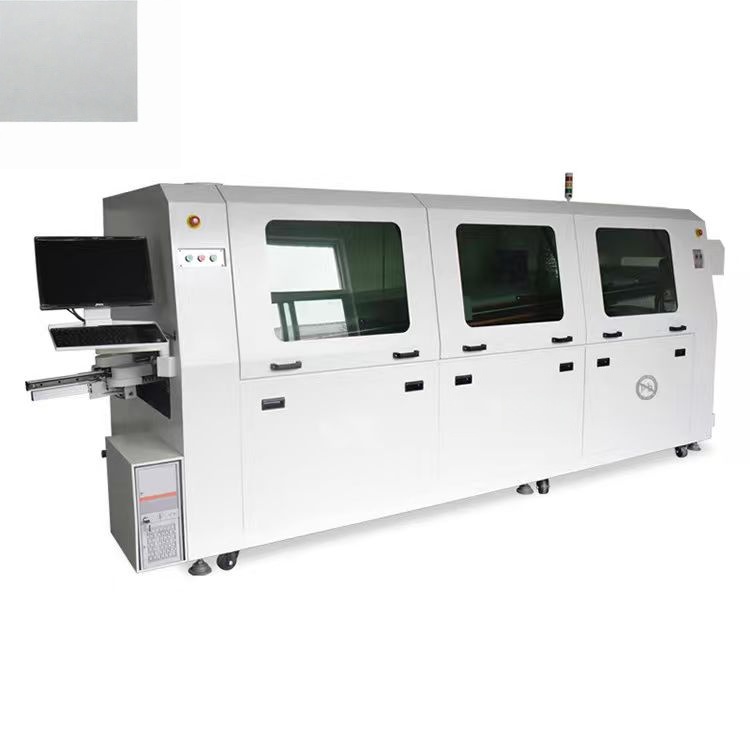

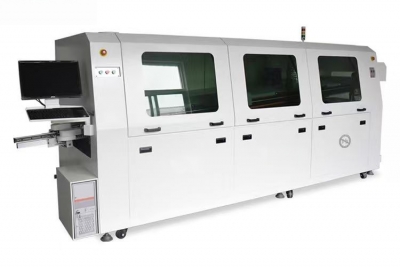

1, the body streamlined appearance design, the use of plastic spraying process does not drop paint, beautiful and generous, durable.
2, four independent 2.0 m preheating area, full hot air preheating, so that PCB get good welding effect.
3, patented titanium alloy chain claw, non-stick tin, never deformation, long life.
4, three observation Windows, beautiful and generous appearance, easy to operate and maintenance.
5, tin furnace electric in and out, hand lifting.
6, equipped with cooling module, temperature compensation module, suitable for lead-free welding and a variety of process requirements
7. Tin furnace adopts adjustable nozzle design; the oxidation amount of tin slag is very low, and the principle of liquid tin flow type design is adopted to reduce the impact oxidation amount of tin. The wave peak can be adjusted with PCB plate width, greatly reducing the oxidation amount of tin when welding PCB small plate, and the adjustable distance is 80-350MM.
8, the transmission mechanism adopts precision modular design, accurate transmission, long life, easy to maintain.
9. The rosin spray device can be pulled out and disassembled for easy cleaning and maintenance.
10. Isolation spray device, and the flux smoke is discharged from the special air duct.
11. Powerful parameter library function, and all kinds of PCB process parameters can be called as required.
12. Use the computer + PLC control system to ensure the reliability and stability of the system.
13. The machine can be automatically switched off according to the date, time and temperature control parameters set by the user.
14. The heating temperature is controlled by PID closed-loop, and the temperature control is stable and reliable.
15. Closed-loop automatic tracking spray system, spray width and spray time automatic adjustment, and can be set in advance and extend the spray time as needed.
Set with economic operation, plate automatic wave, minimize the amount of tin oxidation.
