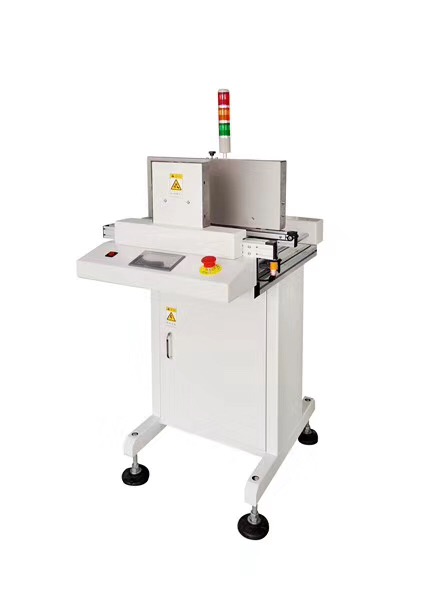

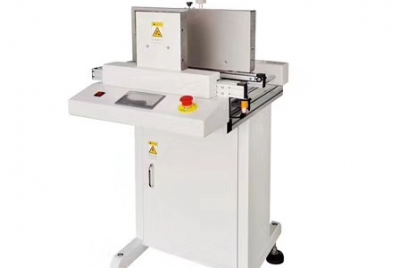

PCB Stacker
Features:
1、Fully steel structure, welded with metal plate and high temperature spray coated for the outer surface.
2、Mitsubishi PLC control system, touch screen interface
3、 Combined with PCB loading and pass-by functions.
4、Adjust width by precision ball screw, PCB can pass by smoothly.
5、 Applicable to multiple thickness of PCBA from 0.6 to 3mm.
6、 Short cycle time, high loading efficiency.
7、 Compact structure, easy to operate.
8、 Non-stop loading boards.
9、 Small size. Save space.
10、Background suppression photoelectric, suitable for various color PCBs with sensitive induction.
11、Configure with Standard SMEMA to communicate with other machines to achieve inline operation.
12. CE certified.
1、Fully steel structure, welded with metal plate and high temperature spray coated for the outer surface.
2、Mitsubishi PLC control system, touch screen interface
3、 Combined with PCB loading and pass-by functions.
4、Adjust width by precision ball screw, PCB can pass by smoothly.
5、 Applicable to multiple thickness of PCBA from 0.6 to 3mm.
6、 Short cycle time, high loading efficiency.
7、 Compact structure, easy to operate.
8、 Non-stop loading boards.
9、 Small size. Save space.
10、Background suppression photoelectric, suitable for various color PCBs with sensitive induction.
11、Configure with Standard SMEMA to communicate with other machines to achieve inline operation.
12. CE certified.
Details
Specification: All non-standard product can be customized
|
Model |
WIT-D400 |
|
Dimension（L×W×H） |
L670×W600×H1125(mm) |
|
PCB Size（L×W） |
50×50-500×300(mm) |
|
PCB Thickness |
0.6-3(mm) |
|
PCB Capacity |
100pcs（Can be added halfway） |
|
Transport Height |
900±20(mm) |
|
Lifting Speed |
Approx. 8s |
|
PCB Transport direction |
L-R or R-L ( One-key switch flow direction) |
|
Power supply |
AC220V 50/60HZ |
|
Air Pressure |
5KGf/cm² |
|
Power |
100w |
|
Control Mode |
PLC+ Touch Screen |
