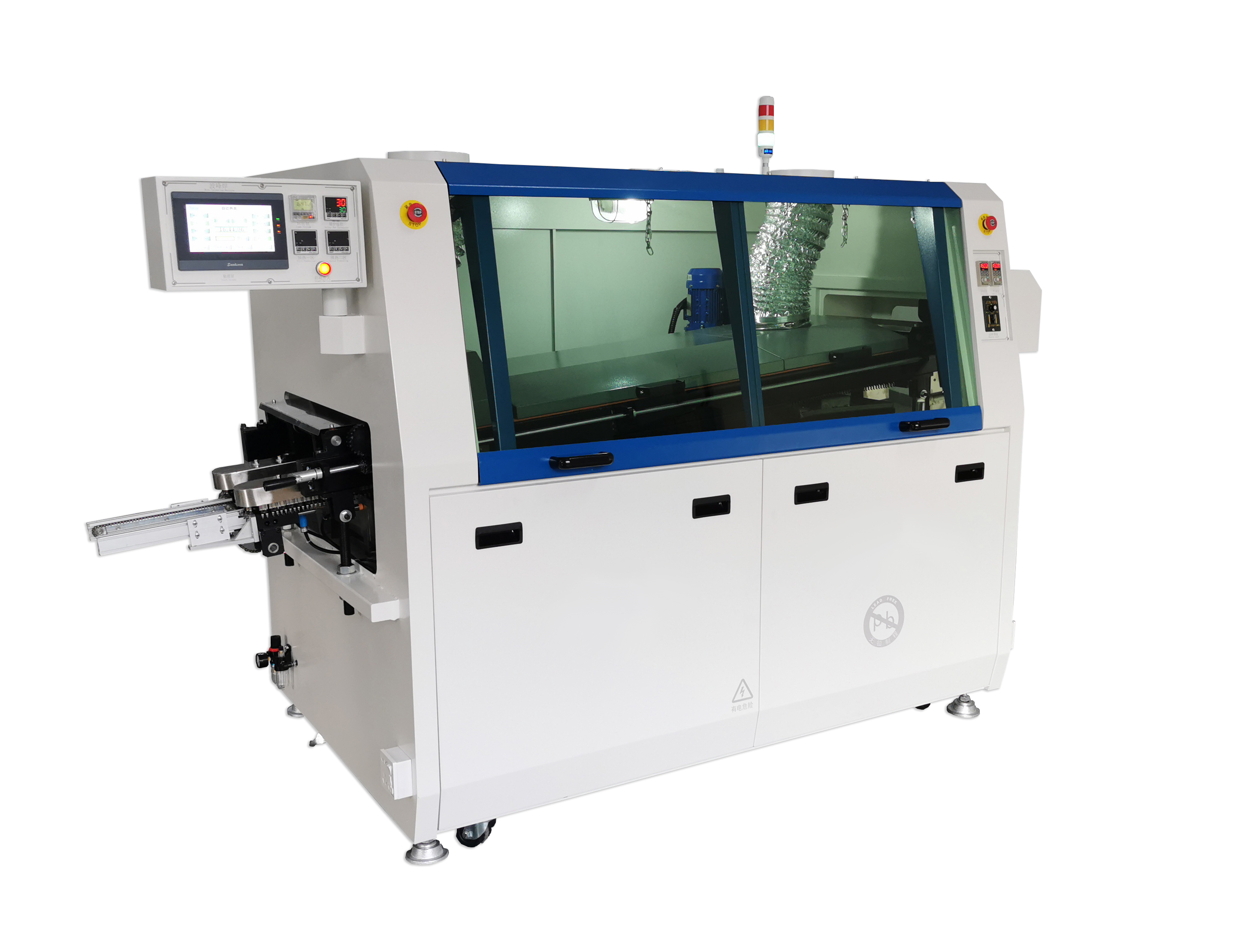

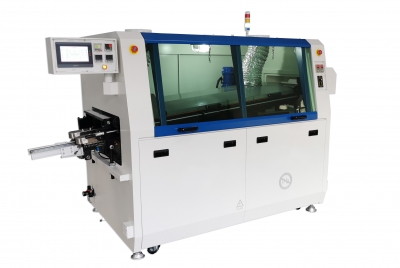

T Series Economical Wave Solder Machine
T series lead-free wave soldering machine,after many years market testing, is XuanYI’s mature product, T series lead-free wave soldering machine has long-term positive feedback from customers. Its unparalleled heating performance and temperature control system meet the requirements of various welding processes, especially energy saving design has been a leading-edge product advantage, maximum reducing the using cost for customers.
Details
Specification of Wave Soldering Machine
|
Model |
XY-B1320 |
XY-B1825 |
|
Dimension(mm) |
2100*1050*1450mm |
2600*1200*1600mm |
|
Power Supply |
380/220V 50/60Hz |
380/220V 50/60Hz |
|
startup power |
Approx 6KW |
Approx 8KW |
|
Operation Power |
Approx 2KW |
Approx 3KW |
|
Control System |
Touch Screen+PLC |
Touch Screen+PLC |
|
Preheating Temp |
(Room Temperature) - 300℃ |
(Room Temperature) - 300℃ |
|
PCB Width(mm) |
50-250mm |
50-300mm |
|
Solder Pot Capacity |
Lead-free 250kg |
Lead-free 300kg |
|
Machine Weight(kg) |
Approx 500kg |
Approx 900kg |
|
Welding agent capacity |
Max5.2L |
Max5.2L |
|
Spray way |
Stepper motor + ST-6 spray nozzle |
Stepper motor + ST-6 spray nozzle |
|
Preheat length |
400mm (one-temperature zone) |
800mm (two-temperature zone) |
