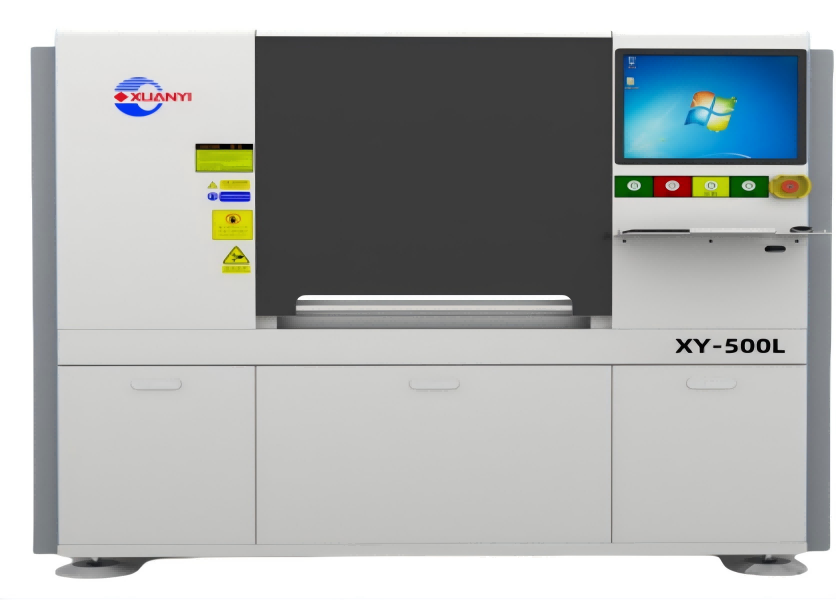

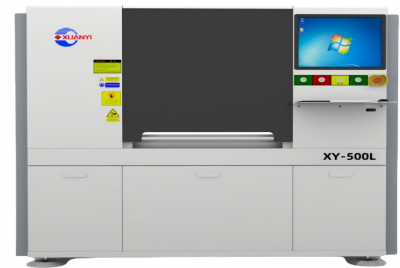

Brand new THK customization: the latest imported THK customized high-speed precision integrated plug-in head structure, high speed, stability and precision;
New master control design: the latest bus control design scheme, replacing the traditional sensor control method, making the machine transmission method more accurate and direct, and the response speed faster;
New feeding function: the latest research and development of exclusive automatic intelligent feeding function, intelligent identification of hole blocking, misinsertion, automatic feeding, reducing manual intervention, so that the machine can achieve true unmanned operation;
New EMS system: the latest professional EMS system is free for private customization to meet the complex requirements of different factories, and the equipment data is transmitted in real time, making human-machine interaction simpler;
New plug-in design: the latest 360-degree plug-in design scheme with no dead angles and any angles makes your machine more adaptable.
Details
Parameter Introduction
Parameter Introduction
|
Theoretical spee |
22000points/hour |
|
Plugin direction |
0-360 degrees increment 1 degree |
|
Lead span |
Double spacing 2.5mm，5.0mm |
|
Substrate size |
Minimum 50mm*50mm maximum L500mm*W450mm |
|
Substrate thickness |
0.79-2.36mm |
|
Component specifications |
The maximum height is 23mm and the maximum diameter is 13mm |
|
Component type |
Capacitors/transistors/triodes/LED lights/button switches/resistors/connectors/coils/potentiometers/fuse holders/fuse wires and other vertical taping packaging materials |
|
Component lead wire cutting foot length |
electric motor adjustment, motor can independently control single point length） |
|
Component lead bending angle |
5-35 degrees (adjustable) |
|
Number of material stations |
Optional 10 stations |
|
Auxiliary functions |
Automatic feeding, regular feeding at high speed, laser guidance |
|
mechanism |
precision cylinder |
|
Foot cutting mechanism |
Electric motor control |
|
Mechanical dimensions (length * width * height) |
Host dimensions 1700mm*1300mm*2000mm |
|
Machine weight |
1500KG |
|
Use power supply/power |
AC220v,50/60HZ,2.0KVA/ 1.6KW |
|
System protection |
Built in soft protection |
|
Voltage/gas usage |
0.6-0.8Mpa/0.3 cubic meters per minute |
|
Environmental temperature for use |
5-25 degrees |
|
Machine noise |
65 分贝 decibels |
|
Paper cutting method |
Servo motor control |
|
Hole position correction method |
Dual CCD visual positioning systems, multi-point MARK visual correction |
|
driving system |
AC servo, AC motor |
|
Data input method |
USB interface input (EXCEL document format) |
