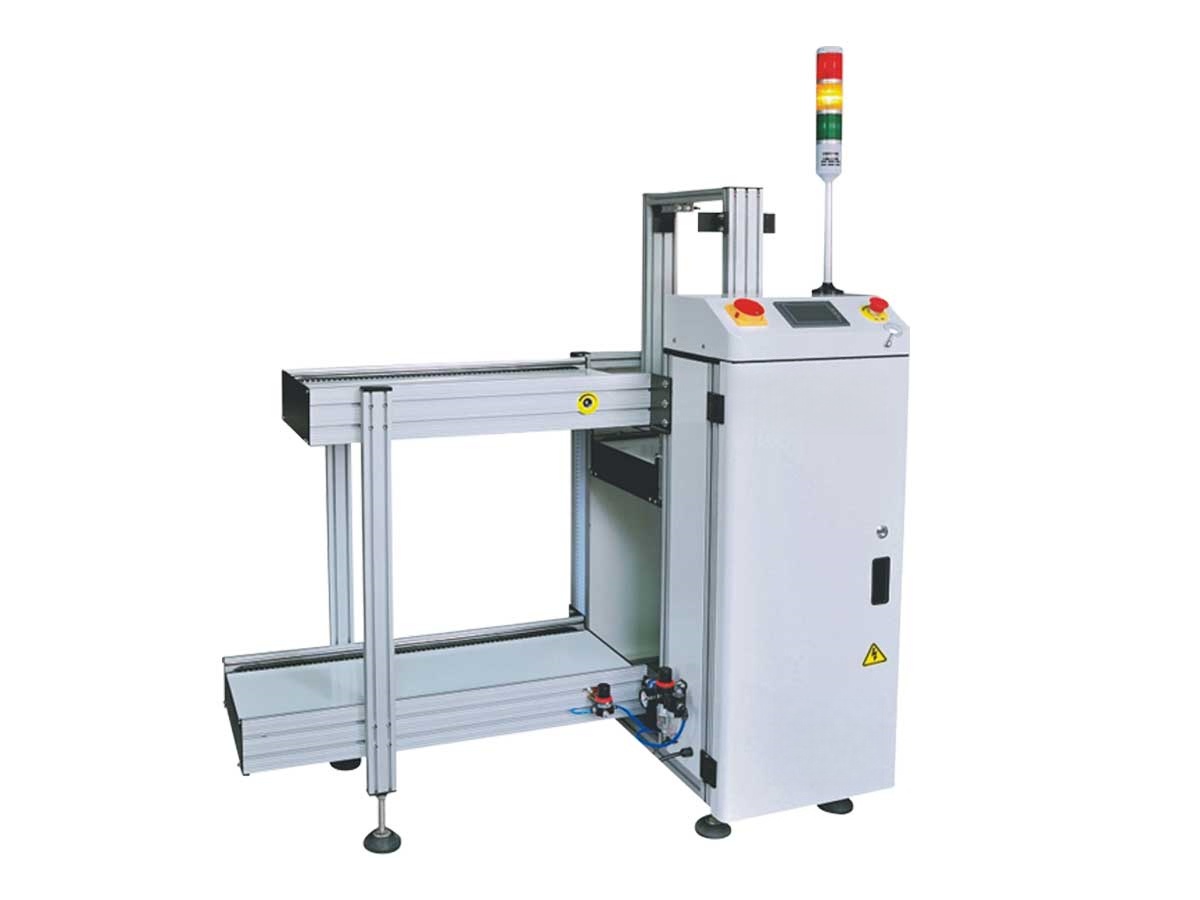

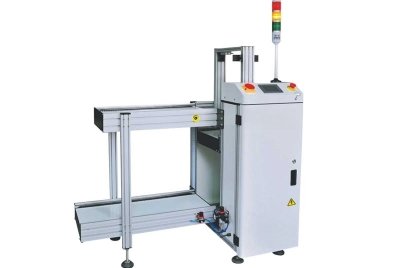

Loader
1.Fully Steel structure, welded with metal plate and high temperature spray coated for the outer surface.
2. Mitsubishi PLC control system, touch screen interface
3.Lifting by motor, transmission by precision ball screw, effective step distance can be set by 10,20,30,40mm。
4.Material containers are fixed by four-position cylinder, moving stable.
5.Board pushing drive by motor, stable, speed adjustable.
6.Photoelectric protection, sound and light alarm in case of abnormality.
7.With Standard SMEMA to communicate with other machines to achieve inline operation.
8. CE certified.
2. Mitsubishi PLC control system, touch screen interface
3.Lifting by motor, transmission by precision ball screw, effective step distance can be set by 10,20,30,40mm。
4.Material containers are fixed by four-position cylinder, moving stable.
5.Board pushing drive by motor, stable, speed adjustable.
6.Photoelectric protection, sound and light alarm in case of abnormality.
7.With Standard SMEMA to communicate with other machines to achieve inline operation.
8. CE certified.
Details
Specification: (All non-standard product can be customized)
|
Model |
XY-L250 |
XY-L330 |
XY-L390 |
XY-L460 |
XY-L510 |
|
Dimension（L×W×H） |
1075×765×1230(mm) |
1210×848×1200(mm) |
1360×925×1224(mm) |
1360×958×1224(mm) |
1605×1005×1224(mm) |
|
Applicable material frame（L×W×H） |
355×320×563(mm) |
460×400×563(mm) |
535×460×570(mm) |
535×530×570(mm) |
630×530×570(mm) |
|
PCB Size（L×W） |
50×50～L350×W250(mm) |
50×50～L455×W330(mm) |
50×50～L530×W390(mm) |
50×50～L530×W460(mm) |
50×50～L625×W510(mm) |
|
Air Pressure |
5KGf/cm² |
||||
|
Power supply |
AC220V 50/60Hz |
||||
|
Power |
300W |
||||
|
Transport Height |
900±30（mm） |
||||
|
PCB Thickness |
0.6-4mm |
||||
|
Transport direction |
L-R or R-L (optional) |
||||
|
Rack Lifting Step |
10，20，30，40（mm） |
||||
|
Control Mode |
PLC+ Touch Screen |
||||
