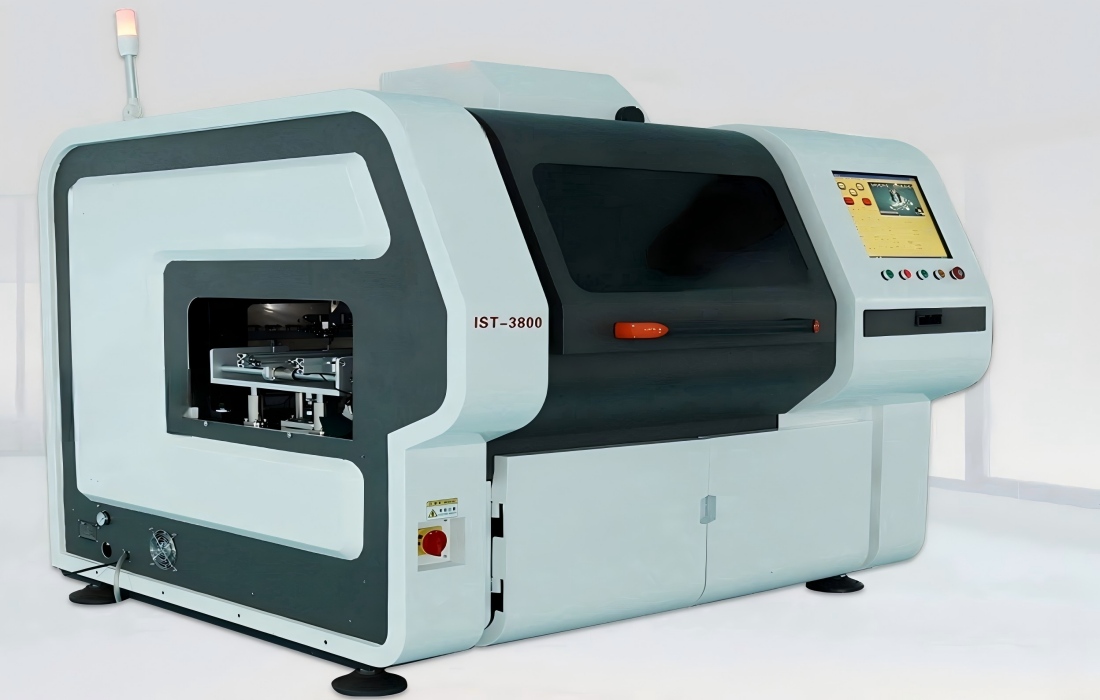

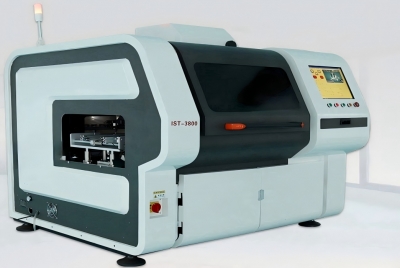

理论速度 Theoretical spee

26000点/小时  26000points/hour

插件方向 Plugin direction

0-360度增量1度 0-360 degrees increment 1 degree

引线跨距 Lead span

双间距 Double spacing 2.5mm

基板尺寸 Substrate size

最小Minimum 50mm*50mm 最大maximum 420mm*420mm

基板厚度 Substrate thickness

0.79-2.36mm

元件规格

Component specifications

最大高度为23mm,最大直径为13mm

The maximum height is 23mm and the maximum diameter is 13mm

元件种类 Component type

电容器/晶体管/三极管/LED灯/按键开关/电阻/连接器/线圈/电位器/保险丝座/熔断丝等立式编带封装料

Vertical braided packaging materials for capacitors/transistors/triodes/LED lights/button switches/resistors/connectors/coils/potentiometers/fuse holders/fuses, etc

元件引线剪脚长度

Component lead wire cutting foot length

1.2mm-2.2mm 电动马达调整，马达可独立控制单点长短 electric motor adjustment, motor can independently control single point length）

元件引线弯脚角度 Component lead bending angle

5-35度（可调） 5-35 degrees (adjustable)

料站数量

Number of material stations

10站

Optional 10 stations

辅助功能 Auxiliary functions

自动补料，规则料高速，激光指引

Automatic feeding, regular feeding at high speed, laser guidance

CTA机构mechanism

精密气缸 precision cylinder

剪脚机构

Foot cutting mechanism

电动马达控制

Electric motor control

机械尺寸（长*宽*高） Mechanical dimensions (length * width * height)

主机尺寸Host dimensions 1700mm*1650mm*1750mm

机器重量 Machine weight

2100KG

使用电源/功率

Use power supply/power

220v,AC（单相single-phase）50/60HZ,2.0KVA/1.6KW（节能型energy-saving type）

系统保护 System protection

内置软保护 Built in soft protection

使用电压/用气量 Voltage/gas usage

0.6-0.8Mpa/0.3立方/分钟cubic meters per minute

使用环境温度

Environmental temperature for use

5-25度degrees

机器噪音 Machine noise

65分贝decibels

切纸方式 Paper cutting method

伺服马达控制 Servo motor control

孔位校正方式 Hole position correction method

机器视觉系统，多点MARK视觉校正 Machine vision systems,Multi point MARK visual correction

驱动系统 driving system

AC伺服，AC马达 AC servo, AC motor

数据输入方式 Data input method

USB接口输入（EXCEL文档格式）USB interface input (EXCEL document format)

控制系统 Control system

中文操作界面（WINDOWS 7系统控制平台）液晶显器

Chinese operating interface (WINDOWS 7 system control platform) LCD display

元件密度 Component density

元件本体之间1mm间距，贴片元件与孔之间距离不能小于3mm

The distance between component bodies should be 1mm, and the distance between patch components and holes should not be less than 3mm

线路板输送方式 Circuit board transportation method

自动上下板 左到右

Automatic up and down board from left to right

MES

开放式支持多种采集格式 Open support for multiple collection formats

显示器 monitor

前置后置双显示器 Front and rear dual displays
