2. The modular design of the heating area is convenient for maintenance and disassembly, independent small circulation air flow design, upper and lower heating method, good thermal compensation, high thermal efficiency, power saving, fast heating speed, suitable for welding of high-quality products such as CSP components.
The special forced hot air circulation structure system can reach MAX up to 15 minutes. And it has fast thermal compensation performance.
3. Modular design, compact structure, easy maintenance.
4. Adopting independent roller structure and leveling support, combined with stainless steel mesh belt, it runs smoothly, durable and wear-resistant. It is not easy to deform after long-term use
Details

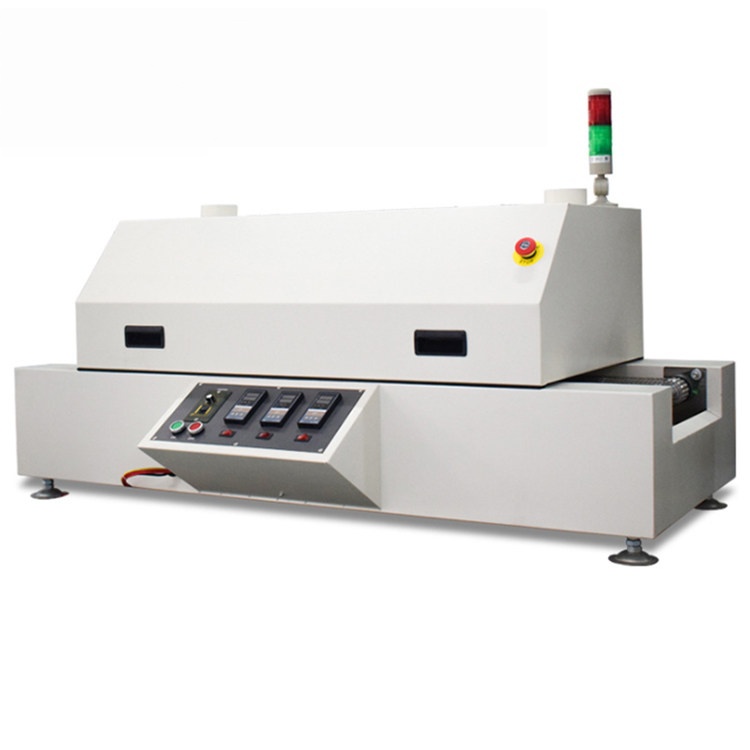

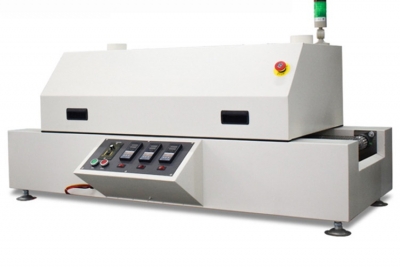

Specification of XY-H330A: (All non-standard product tin furnaces can be customized)
|
Model |
H330A |
|
Heating part parameters |
|
|
Number of heating zones |
Up 3 down 0 |
|
Length of heating zone |
1000mm |
|
Heating method |
Whole heat wind |
|
Number of cooling zones |
1 |
|
Send some parameters |
|
|
Maximum width of PCB board |
300mm |
|
Transport direction |
Left to right |
|
Height of conveyor belt |
350±20mm |
|
move mode |
Net transmission |
|
Belt speed |
0-1200mm/min |
|
Control some parameters |
|
|
source |
5 lines, 3 phases, 380V single phase, 220V,50/60Hz |
|
initial power |
6KW |
|
Normal operating power consumption |
Approx.1.5KW |
|
heating-up time |
About 15 minutes |
|
Temperature control range |
Room temperature-310℃ |
|
Temperature control method |
PID closed loop control, SSR drive |
|
Temperature control accuracy |
±1℃ |
|
Temperature distribution deviation of PCB board |
±2℃ |
|
Abnormal alarm |
Abnormal temperature (over high or low temperature after constant temperature) |
|
Body parameters |
|
|
External dimensions |
L1500×W500×H650 |
|
weight |
Approx.80Kg |
